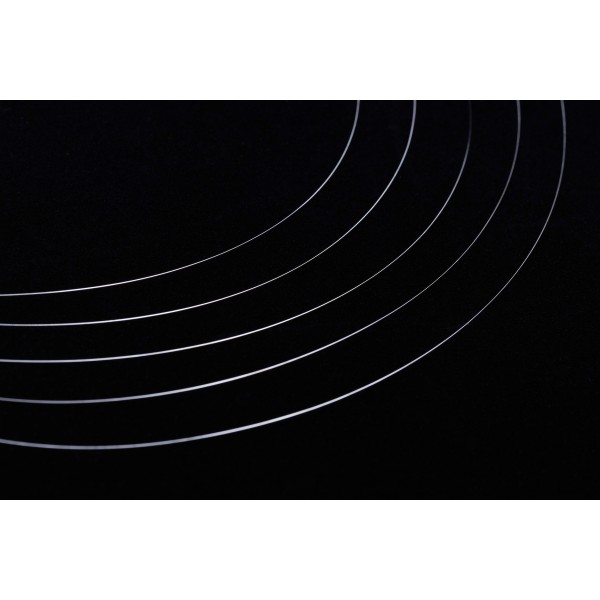

Monel 400
Monel 400 is a nickel-containing copper alloy with the following properties and benefits:
Excellent corrosion resistance: excellent corrosion resistance, especially to salt water, seawater, nitric acid, hydrofluoric acid and other corrosive media have good resistance. This makes it widely used in Marine environments and the chemical industry.
Excellent wear resistance: It has high hardness and good wear resistance, so it can also maintain good surface quality in high-speed flowing media.
Excellent mechanical properties: good ductility and plasticity, easy to process and form. At the same time, it also has good tensile strength and fatigue resistance, suitable for various mechanical applications.
Excellent thermal performance: it can still maintain good performance at high temperatures, and has good heat conductivity, suitable for high temperature and high pressure working conditions.
High electrical conductivity: It has good electrical conductivity, so it is also widely used in electrical and electronic applications.
Good oxidation resistance: It has good oxidation resistance at high temperatures, so it is suitable for use in high temperature environments, such as heaters and heat exchangers in high temperature oxidizing atmospheres.
In general, the characteristics of Monel 400 on the wire include excellent corrosion resistance, wear resistance, mechanical and thermal properties, making it in the Marine engineering, chemical industry, electronic equipment and other fields have a wide range of applications.
Excellent corrosion resistance: excellent corrosion resistance, especially to salt water, seawater, nitric acid, hydrofluoric acid and other corrosive media have good resistance. This makes it widely used in Marine environments and the chemical industry.
Excellent wear resistance: It has high hardness and good wear resistance, so it can also maintain good surface quality in high-speed flowing media.
Excellent mechanical properties: good ductility and plasticity, easy to process and form. At the same time, it also has good tensile strength and fatigue resistance, suitable for various mechanical applications.
Excellent thermal performance: it can still maintain good performance at high temperatures, and has good heat conductivity, suitable for high temperature and high pressure working conditions.
High electrical conductivity: It has good electrical conductivity, so it is also widely used in electrical and electronic applications.
Good oxidation resistance: It has good oxidation resistance at high temperatures, so it is suitable for use in high temperature environments, such as heaters and heat exchangers in high temperature oxidizing atmospheres.
In general, the characteristics of Monel 400 on the wire include excellent corrosion resistance, wear resistance, mechanical and thermal properties, making it in the Marine engineering, chemical industry, electronic equipment and other fields have a wide range of applications.
Density: |
8.8 g/cm3 |
Melting Point: |
1350°C |
Coefficient of Expansion: |
13.9m/m °C (at 21 - 93°C) |
Youngs Modulus: |
173 kN/mm2 |
Rigidity Modulus: |
65.3 kN/mm2 |
Applicable Standards: |
BS 3075 NA13, DTD 205 |
W.NR (UNS): |
Monel 400;DIN 2.4360;UNS N04400 |
Approx Tensile Strength: |
400-500 N/mm2 (annealed) |
Service Temperature: |
-196 to +230 °C (recommended) |
Chemical Composition: |
Ni : 63 % |
Cu : 28-34 % |
|
Fe : < 2.5 %;Mn : 2 % |
